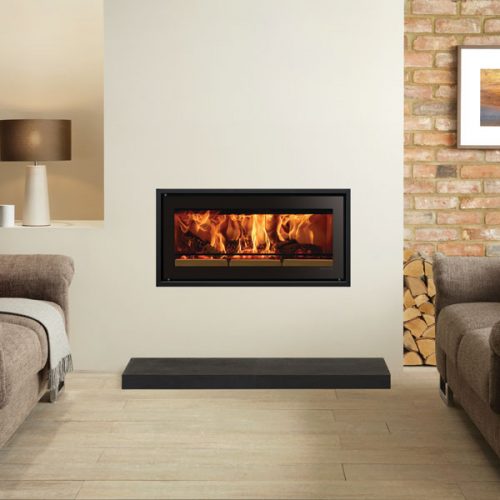

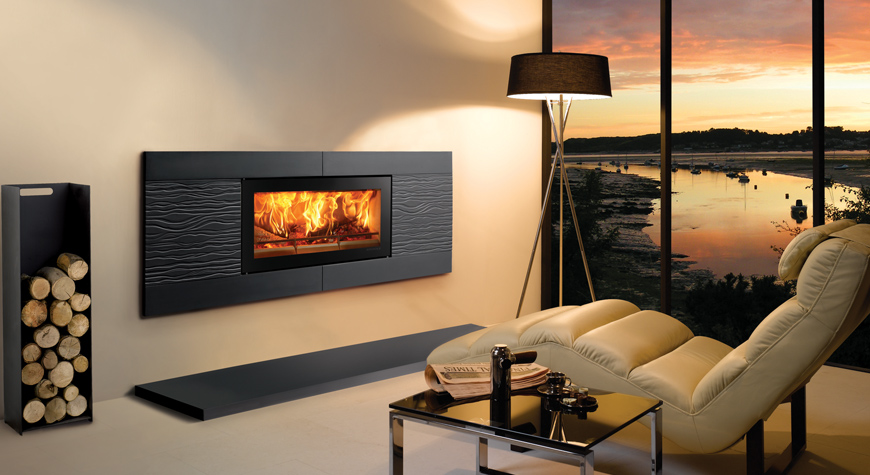

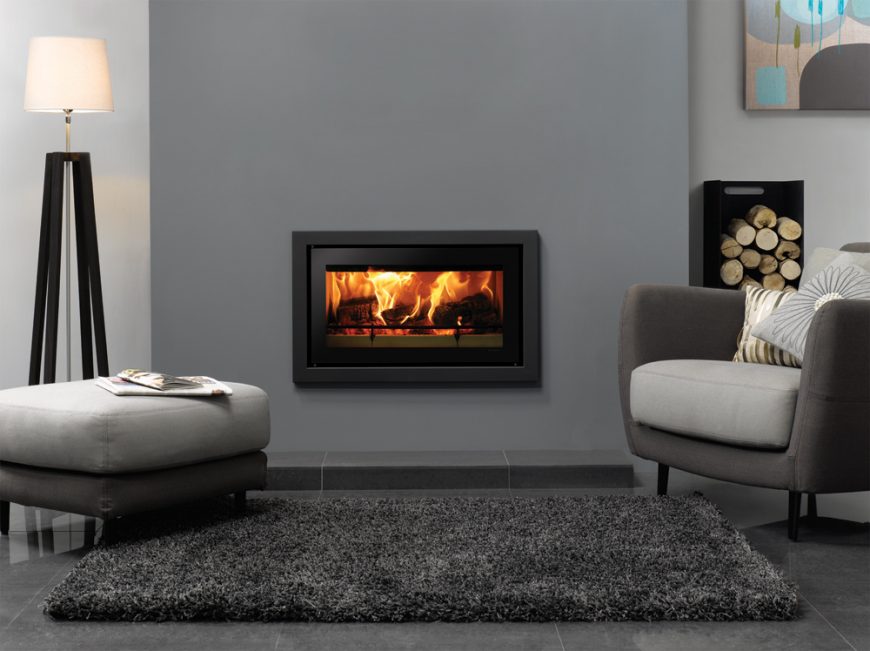

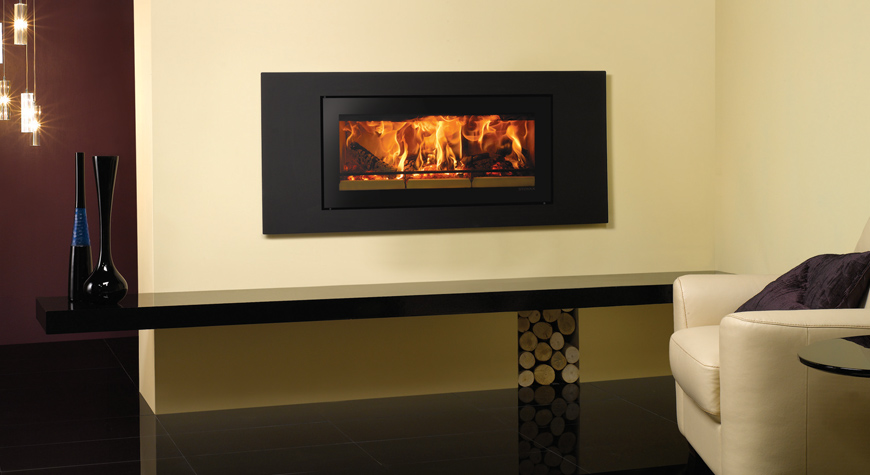

Our Studio Inset wood burning fires have been designed to create a striking feature in your living space with their enticing widescreen flame visuals complemented by an extensive array of frames and styling options. Available in four sizes, these wood burning fires feature the latest Cleanburn and Airwash systems, allowing them to burn with outstanding efficiency. Some of the Studio Inset wood burning fires are suitable for use in Smoke Control Areas, when fitted with the appropriate kit.

Steel Frame

Body material Steel
Rated output 5kw
SIA Ecodesign
Yes - more information
Smoke control area approved Yes
Cleanburn / Airwash
Yes
Efficiency 80%
Room vent required
No
External air supply option
Yes
Flue connection 150mm - top or rear interchangable
Maximum log length 450mm
Fuel type
Wood
Grate / Ashpan
No
Suitable for 12mm Hearth No
Weight 110kg



  1. TCL (Technical Combustion Lining) High density thermal liner system
  2. Heated air jets from cleanburn ports burn hydrocarbons in smoke
  3. Airwash air flow
  4. Primary control
  5. Removable handle (Studio 500, 1, 2 & 3) and door opening catch (Studio 500, 1 & 2)
  6. Convected and radiant heat
  7. Convected heat ducting system outlet
  8. Easy fit flue connection
  9. Removable baffles
  10. External air facility (insets only)
  11. Optional fan kit (insets only)
  12. Optional 10˚ flue outlet (insets only – not illustrated)
  13. Optional Smoke Control Kit (Studio 500†, 1 & 2 only – not illustrated)
