 Charnwood Cranmore 5  Cool touch handle Cool touch handle allows easy opening without the need for a tool or glove.  Quatraflow system The Quattroflow Air Management System is a revolutionary air management system patented by Charnwood and used on the Aire, Skye, Arc, Cove, Island, Bay, Bembridge and C-Series models.  Sliding firebed for clean and easy ash removal. Available on the Aire and Cranmore range  Charnwood heatshields Charnwood’s rear heat shields and convection panels are designed specifically for situations where space within the fireplace is limited. The steel heat shield allows minimum rear wall clearances to be reduced.
The heat shield is available in a number of sizes for all Aire, Cove, Island, C-Series, Bembridge and Country dry model  External air supply The external air kits are a range of devices that enable an outside air supply to be channeled directly into your Charnwood stove.
As well as providing further comfort and operational efficiency for your stove our air kits help overcome issues where the room requires an additional air supply. They are available for all Aire, Skye, Arc, Bay, Cove, Island, C-Series and Bembridge dry models.  Vertical rear flue adaptor available for all Aire, Skye, Arc, Island, Cove, C-Series, Bembridge and Country models.
This enables you to position the stove further out into the room: away from the wall behind. This will add a depth to the stove of between 115 -196mm depending on the model.  Cooking plates The cast iron plates incorporates conduction fins on the underside and simply replaces the blanking plate on a standard Charnwood stove to create a highly effective hot plate for cooking.  click the images to enlarge |

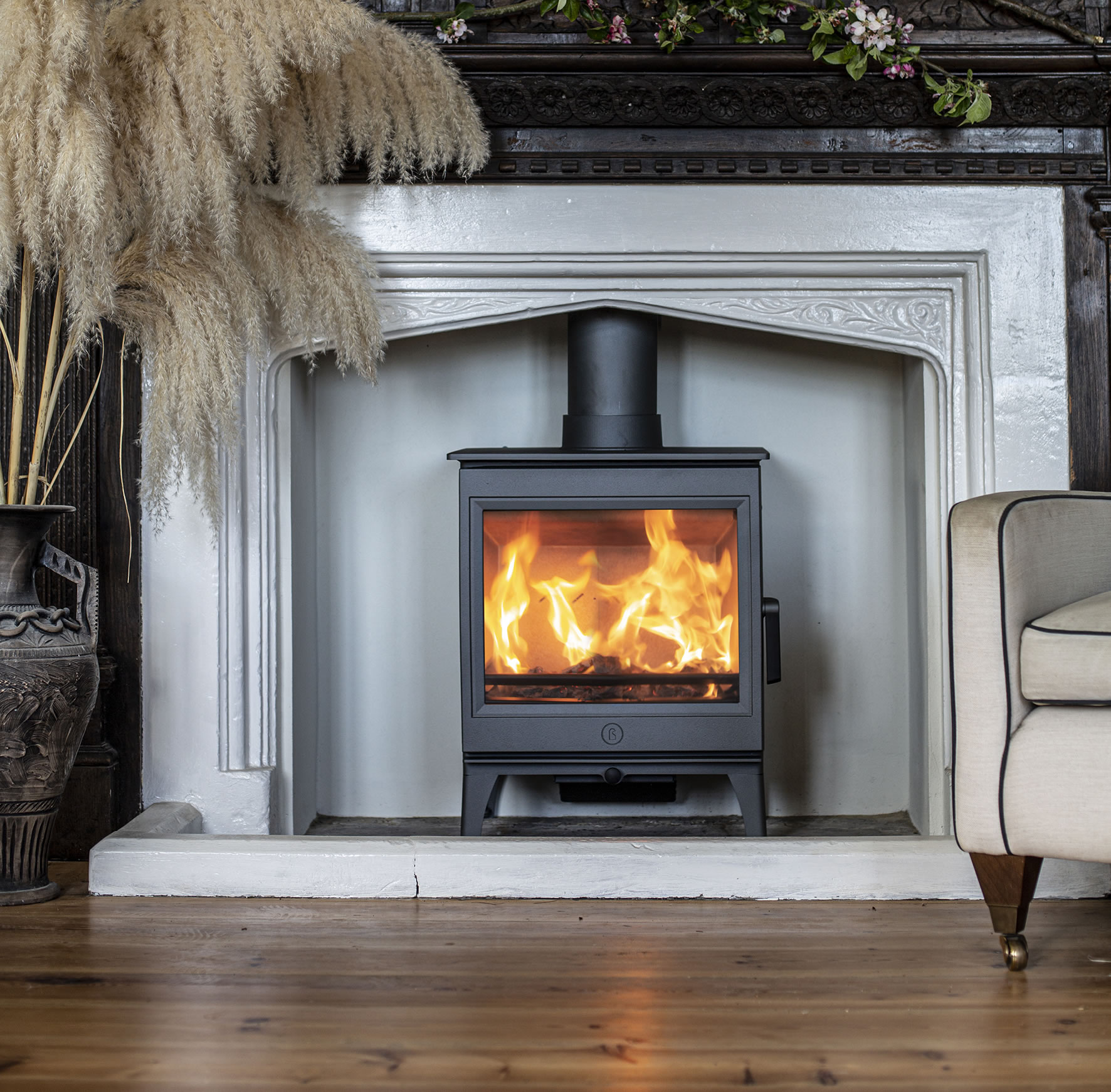

The Cranmore 5 uses Charnwood clean burn Blu technology for an exceptionally efficient 5kw output and has been awarded a ClearSkies level 5 rating.
It is available in a range of colours and features a firm close, cool-to-touch, handle for safe and easy reloading. It is incredibly simple to operate with one single air control and features a Sliding firebed for clean and easy ash removal.
|
| Body material | Steel body - cast iron door |
| Rated output | 5kw |
| SIA Ecodesign |
Yes - more information |
| Smoke control area approved | Yes |
| Cleanburn / Airwash |
Yes |
| Efficiency | 82% |
| Room vent required |
No - *unless the house was built after 2008- See Doc J page 17 |
| External air supply option |
Yes |
| Flue connection | 150mm - top or rear interchangable |
| Maximum log length | 300mm |
| Fuel type |
Wood |
| Grate / Ashpan |
Ashpan only |
| Suitable for 12mm Hearth | Yes |
| Weight | 84kg |
Heat shield
Vertical rear flue adaptor
External Air Kit
