 Charnwood Cranmore 3  Charnwood Cranmore 3  Sliding firebed for clean and easy ash removal. Available on the Aire and Cranmore range  Quatraflow system The Quattroflow Air Management System is a revolutionary air management system patented by Charnwood and used on the Aire, Skye, Arc, Cove, Island, Bay, Bembridge and C-Series models.  External air supply The external air kits are a range of devices that enable an outside air supply to be channeled directly into your Charnwood stove.
As well as providing further comfort and operational efficiency for your stove our air kits help overcome issues where the room requires an additional air supply. They are available for all Aire, Skye, Arc, Bay, Cove, Island, C-Series and Bembridge dry models.  Charnwood heatshields Charnwood’s rear heat shields and convection panels are designed specifically for situations where space within the fireplace is limited. The steel heat shield allows minimum rear wall clearances to be reduced.
The heat shield is available in a number of sizes for all Aire, Cove, Island, C-Series, Bembridge and Country dry model  Vertical rear flue adaptor available for all Aire, Skye, Arc, Island, Cove, C-Series, Bembridge and Country models.
This enables you to position the stove further out into the room: away from the wall behind. This will add a depth to the stove of between 115 -196mm depending on the model.  Cooking plates The cast iron plates incorporates conduction fins on the underside and simply replaces the blanking plate on a standard Charnwood stove to create a highly effective hot plate for cooking.  click the images to enlarge |

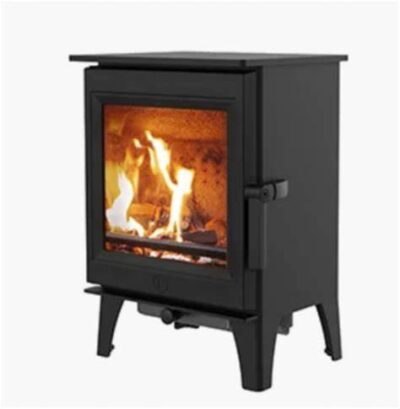

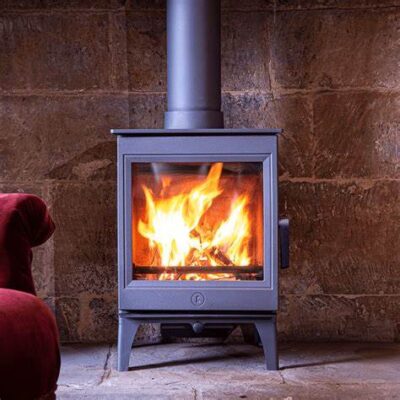

The Charnwood Cranmore 3 Wood Burning Stove has been designed for smaller spaces, not just for conventional houses – but for cabins, huts, and tiny homes. The compact proportions of the Cranmore 3 make it well suited to many areas where a small size stove is required. The Cranmore 3 is also SIA Eco Design 2022 ready and DEFRA approved for use in smoke control areas for the burning of wood. The Cranmore 3 has a heat output range of 1.5-5Kw which means this stove is perfect for small sized rooms with a superb efficiency of 86%. As the Cranmore 3 has a small output and excellent efficiency rating this means that you will get the maximum from your fuel, which will save you on running costs. The cool touch handles for opening the door and is fitted with a removable ashpan for ease of use.
|
| Body material | Steel body - cast iron door |
| Rated output | 3.7kw |
| SIA Ecodesign |
Yes - more information |
| Smoke control area approved | Yes |
| Cleanburn / Airwash |
Yes |
| Efficiency | 86% |
| Room vent required |
No - *unless the house was built after 2008- See Doc J page 17 |
| External air supply option |
Yes |
| Flue connection | 125mm - top or rear interchangable |
| Maximum log length | 200mm |
| Fuel type |
Wood |
| Grate / Ashpan |
Ashpan only |
| Suitable for 12mm Hearth | Yes |
| Weight | 72kg |
Heat shield
Vertical rear flue adaptor
External Air Kit
