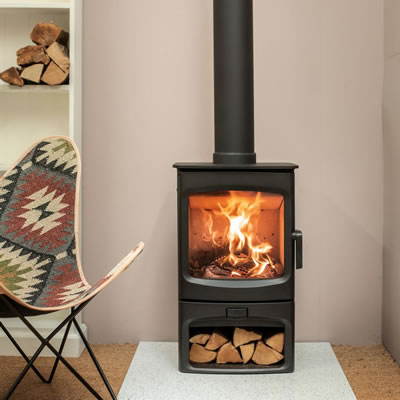

 Charnwood Aire 3 Aire 3 on low stand  Charnwood Aire 3 on store stand   Cool touch handle Cool touch handle allows easy opening without the need for a tool or glove.  Quatraflow system The Quattroflow Air Management System is a revolutionary air management system patented by Charnwood and used on the Aire, Skye, Arc, Cove, Island, Bay, Bembridge and C-Series models.  Sliding firebed for clean and easy ash removal. Available on the Aire and Cranmore range  External air supply The external air kits are a range of devices that enable an outside air supply to be channeled directly into your Charnwood stove.
As well as providing further comfort and operational efficiency for your stove our air kits help overcome issues where the room requires an additional air supply. They are available for all Aire, Skye, Arc, Bay, Cove, Island, C-Series and Bembridge dry models.  Charnwood heatshields Charnwood’s rear heat shields and convection panels are designed specifically for situations where space within the fireplace is limited. The steel heat shield allows minimum rear wall clearances to be reduced.
The heat shield is available in a number of sizes for all Aire, Cove, Island, C-Series, Bembridge and Country dry model  Vertical Rear Flue adaptor A vertical rear flue adaptor is available for all Aire, Skye, Arc, Island, Cove, C-Series, Bembridge and Country models.
This enables you to position the stove further out into the room: away from the wall behind. This will add a depth to the stove of between 115 -196mm depending on the model.  Cooking plates The cast iron plates incorporates conduction fins on the underside and simply replaces the blanking plate on a standard Charnwood stove to create a highly effective hot plate for cooking.  Efficiency label click the images to enlarge |
This British made stove by Charnwood is an exciting addition to the Aire collection.
The Charnwood Aire 3 has been designed for smaller spaces. Not just for conventional houses – but for cabins, for yurts and tiny homes. With an efficiency of 86% it has all the features of both the Aire 5 and Aire 7: large ceramic glass window, single air control for easy use, cool-to -touch handle for safe reloading but perhaps best of all it meets all the criteria set for Ecodesign 2022 with a Clear Skies rating of 5 stars.
|
| Body material | Steel body - cast iron door |
| Rated output | 3.7kw |
| SIA Ecodesign |
Yes - more information |
| Smoke control area approved | Yes |
| Cleanburn / Airwash |
Yes |
| Efficiency | 84% |
| Room vent required |
No - *unless the house was built after 2008- See Doc J page 17 |
| External air supply option |
Yes |
| Flue connection | 125mm - top or rear interchangable |
| Maximum log length | 250mm |
| Fuel type |
Wood |
| Grate / Ashpan |
Ashpan only |
| Suitable for 12mm Hearth | Yes |
| Weight | 72kg |
Low Stand
Store stand
Heat shield
Vertical rear flue adaptor
External Air Kit
